Geobag, geopipe and geoton packing

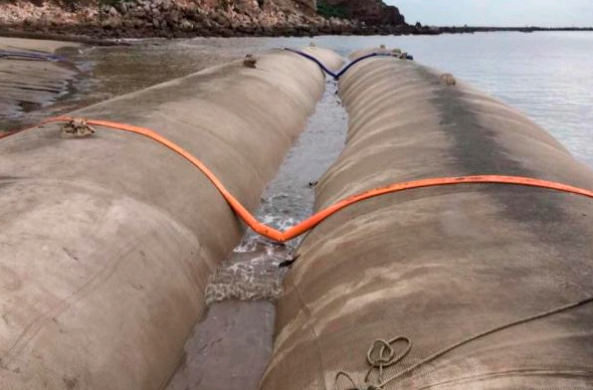

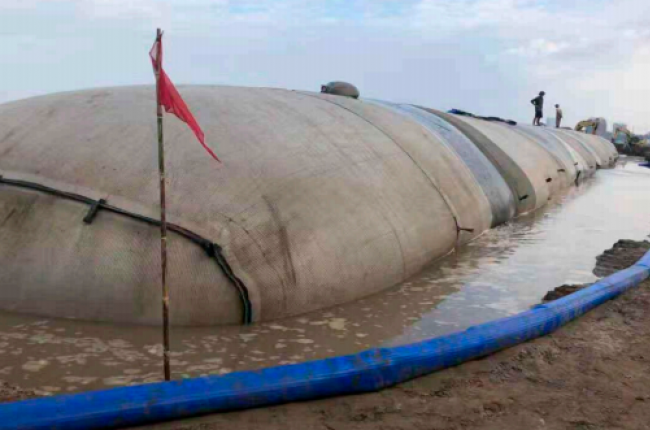

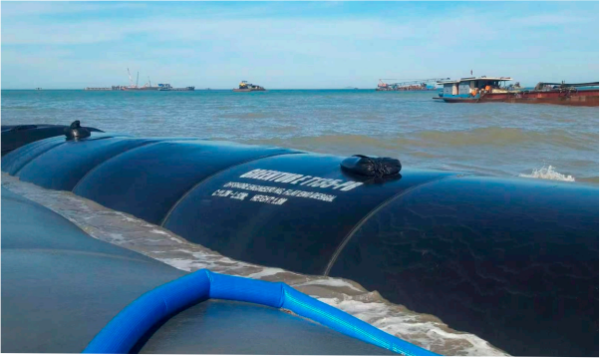

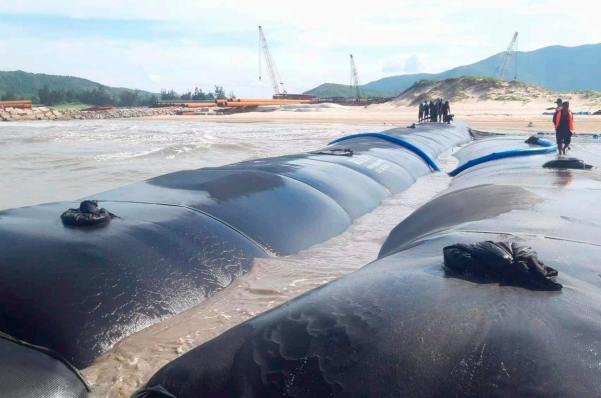

The geotextile is sewn by polypropylene filament woven geotextile. The size of the geotextile is adjusted according to the needs of customers. The geotextile is easy to carry, can reduce the impact of wind and waves on the embankment, play the role of buffering and isolation, and protect the embankment. It can be used as a temporary weight to fix the foot or fill the embankment. Geo pipes and geo bags are large-scale pipe bags and inclusions made of light anti-aging high-strength geotextiles, which can be effectively used for bank protection and bank collapse rescue, embankment construction, and the placement of dredged spoil. It can also be used for environmental protection, such as sewage and sediment treatment, agricultural waste cleaning, etc.

Parameter

Geobag, geopipe and geoton packing


Physical indexTest methodCompany(510g/m²)(460g/m²)
Color

blackwhite
PermeabilityASTM D 4491Sˉ¹>0.4>0.4
Tensile strength (longitudinal)ASTM D 4595KN≥130125
Elongation at break (longitudinal)ASTM D 4595%≤2525
Tensile strength (transverse)ASTM D 4595KN110105
Elongation at break (transverse)ASTM D 4595%2525
CBR bursting strengthASTM D 6241KN129.5
Equivalent aperture o90ASTM D 4751mm
0.350.35
Sewing strength (longitudinal)ASTM D 4884KN/M>70>68
Sewing strength (transverse)ASTM D 4884KN/M>55>50
Anti aging rate: 70% residual strength after 500 hours
Other colors available
