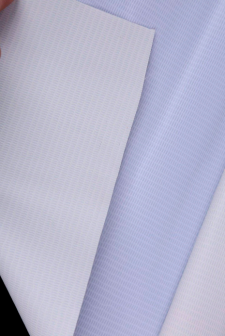

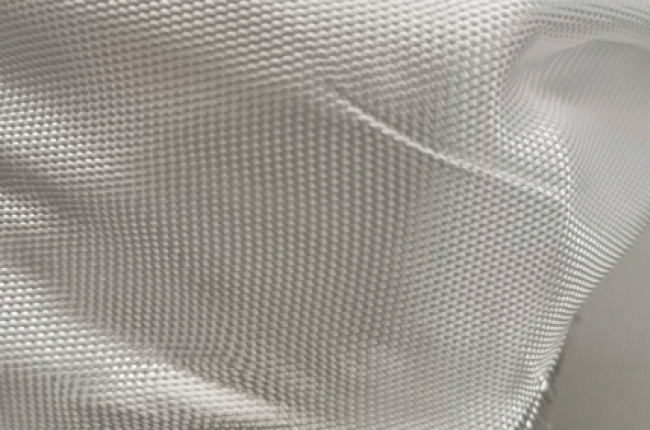

Filament woven geotextile

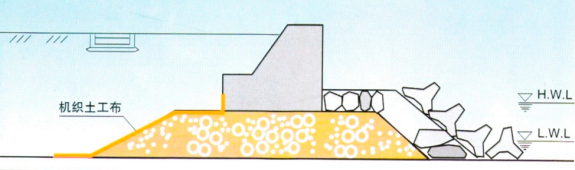

Filament woven geotextile is a series of industrial products of geotechnical materials formed to meet various requirements of geotechnical engineering. It uses the characteristics of synthetic fiber to meet the requirements of various geotechnical engineering purposes such as filtration, isolation, reinforcement and protection. Filament woven geotextile is a kind of high value product in geotechnical engineering. In order to ensure the stability and balance of the product structure and the compliance rate of the engineering parameters, the whole production of the filament woven geotextile of our company is produced by the imported wide loom to ensure the quality.

High strength: using high-strength industrial synthetic fibers such as polypropylene, polyester and nylon as raw materials, it has high original strength. After mechanical strength, it becomes a regular interwoven structure, and the comprehensive bearing capacity is further improved.

Durability: the immutable performance of synthetic chemical fiber keeps its original characteristics for a long time.

Corrosion resistance: synthetic chemical fiber is resistant to acid, alkali, moth and mold.

Water permeability: woven fabric can effectively control its structural pores to achieve a certain water permeability.

Convenient storage and transportation: due to its light weight, it can be packaged and transported according to certain requirements, and it is convenient for storage and construction.

Parameter

Technical parameters of polypropylene filament woven fabric

POLY YPROPYLENE/PP

CBR bursting strength

Physical indextest methodCompanytechnical parameter
Gram weightASTM D 5261
g/m2
230300400
5006007008009001300
Colorwhite
tensile strengthradialASTM D 4595KN/M W5075100130160180200230360
LatitudinalASTM D 4595KN/M W35527090112126140160280
elongation at breakradialASTM D 4595%小35
LatitudinalASTM D 4595%小30
ASTM D 6241KN46.910.5141820.5232428

tear strengthASTM D 4533KN0.611.31.551.922.22.33.2
permeabilityASTM D 4491Sˉ¹0.01-0.8
Equivalent aperture o90ASTM D 4751mm0.06-0.5
Door width: maximum 3.8m, normal 3.5m, other colors available

Technical parameters of polyester filament woven fabric

POLY YPROPYLENE/PET

Physical indextest methodCompanytechnical parameter
model

100/50150/50150/150
200/50400/50300/300500/100800/50
colorwhite
tensile strengthradialASTM D 4595KN/M W100150150200400300500800
LatitudinalASTM D 4595KN/M W5050150505033010050
elongation at breakradialASTM D 4595%15
LatitudinalASTM D 4595%15
CBR bursting strengthASTM D 6241KN0.01-0.8
Equivalent aperture o90ASTM D 4751mm0.06-0.5
Door width: maximum 3.8m, normal 3.5m, 3.6m
